About this 3D model

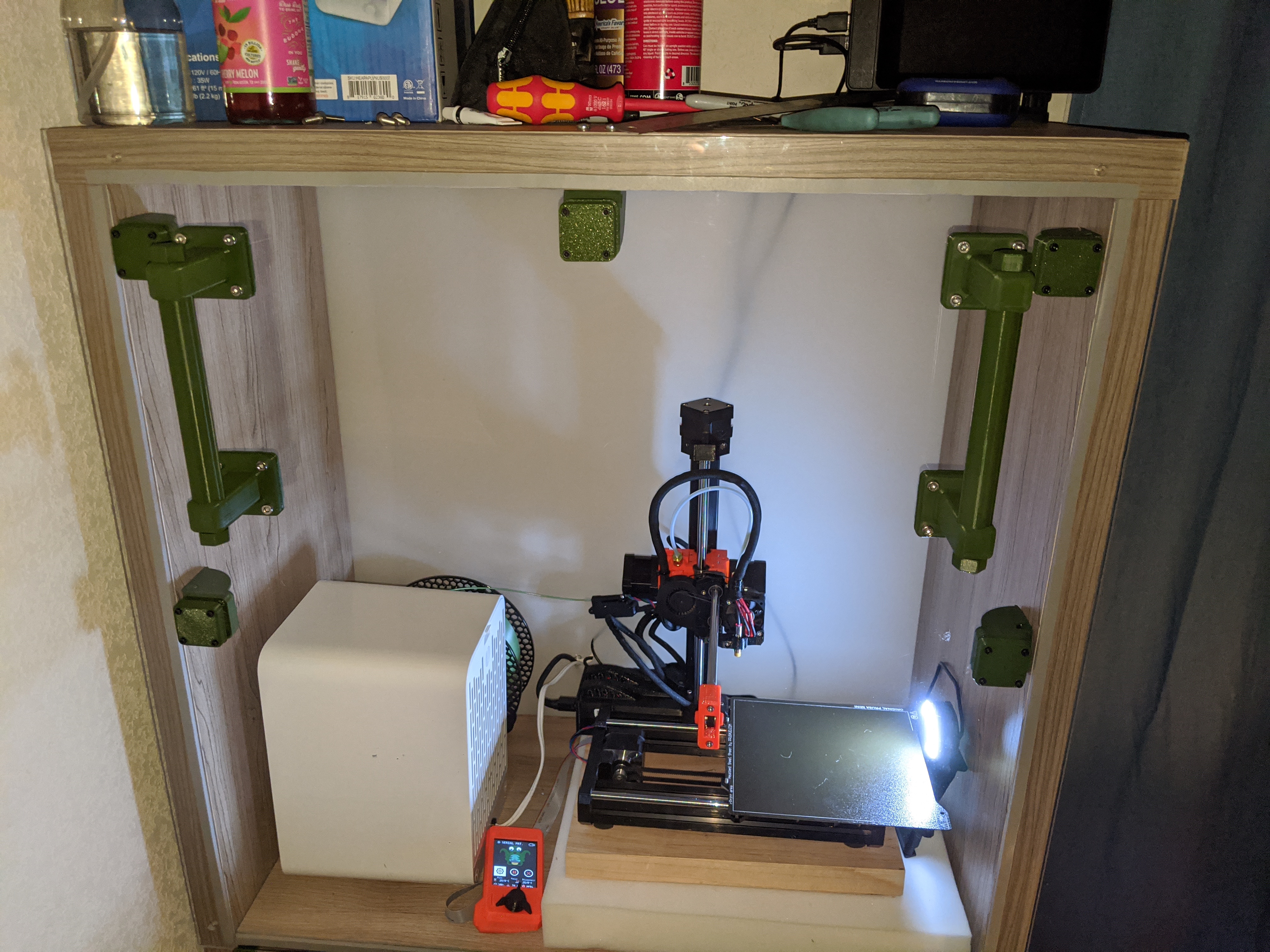

A remix of the Prusa IKEA LACK enclosure made instead for the IKEA Kallax instead. It is easy to make and it looks good.Like the original, this is made for 3 mm acryllic glas on both back and front. The Kallax has a gap for 68x68 cm, but I recommend taking off a few millimeters for good measure. Same goes for both door elements, though these should naturally be half that width. I use mine for a Prusa Mini enclosure, and I do suspect that you would not be able to fit an I3 into this enclosure, making it best suited for a small printerPrint Guide: - Print the Kallax_Back_1 twice, as these will be used for the back plate top left corner, and the bottom right corner - Print the Kallax_Back_2 twice, as these will be used for the back plate top right corner, and the bottom left corner - Print the Kallax_Clip - Print each other element once - Each element can be printet without support on the largest flat they have The Original LACK Enclosure also has door knobs, spool and PSU holders, but I suggest finding those on the original model https://www.printables.com/model/17-original-prusa-i3-mk3-enclosure-ikea-lack-table-pr/files
