About this 3D model

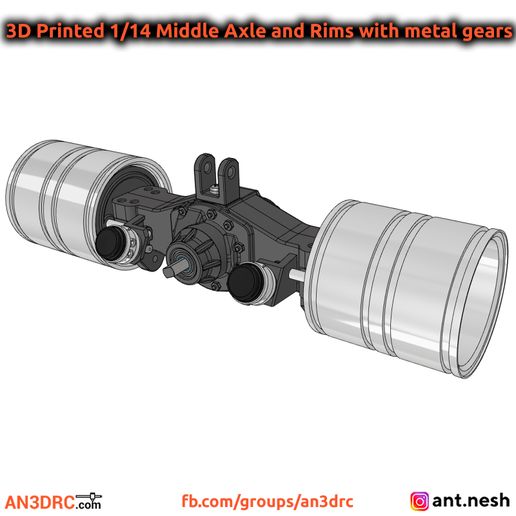

3d printed RC Chassis for 1/14 trucks. Assembly instruction with list of non-printed parts you can find here (https://docs.google.com/presentation/d/1xBIW8QfSyVz5ysL2jcts8UPlHOL7LQHrDNFdyeDREEA/) Model features: - RC model, 1/14 scale, 6x4 or 6x6 - Metal gears and shafts inside printed housings of transfer case and axles (its low down price of model building). - Used RS550 motor with 2-step gearbox from 12V 2-step screwdriver (its low down price of model building). - Can be printed with 220x220mm printers or bigger - Length ~559mm (Can be adjusted) - Width ~ 192/211mm - Height ~ 228/258mm - Wheelbase ~ 273+104mm (Can be adjusted) - Track front ~ 152mm - Track rear ~ 142mm Update 16 May 2026 ------------------------------------- - Small optimizations in Axles parts. No need to reprint.
